InfoSphere Big Data - A Cursory Overview

After a half day of talking with IBM reps about Big Data products and some use cases, here is how I summarized how the pieces fit together.

At time 0 you collect everything and analyze it for correlations to determine which data items are valuable and how they relate to each other (Big Insights platform). Then you build a control model.

Learning from time 0 is used to configure a "real time" strategy for the data analysis and system control.

• Streams provide real time processing of data "on the wire" - nothing need be stored. The output of this is three fold:
• "Live" reports for users
• A data subset to feed to the data warehouse
• Control signals to feed back to the data collectors to adjust behavior (if needed).
• Netezza (Data Warehouse) provides a location where "fast" analysis on a "limited" subset of the data can occur.

Hadoop holds everything else so that longer term analysis with full data sets is possible. This could be used to:

• Adjust the control models
• Change which data subsets are warehoused
• Perform ad hoc deep dive analysis.
• Perform regular analysis on data sets which are too large to reasonably warehouse (e.g. raw scan data).

Yes! We Have NoSQL Today.

Once you have a system which can process huge amounts of data (big data), you need a place to store all of that data. This is what databases are for.

Traditionally, this has meant a relational database. But relational databases place many constraints on how the data is modeled ("normal forms") which are inconsistent with the high volume data sources which need to be analyzed (e.g. all the webpages in the world, all the legal documents in your company or all the tweets being posted each day).

• Relational DBs require that data be modeled into a set of tables that contain unique entities (rows), described by attributes (columns) which are arranged in such a way as to describe one aspect of each entity in each table with no redundancies.
• said another way:
• each row has a primary key made from one or more columns. Column data contains single values (1NF).
• All columns in a table relate only to the complete primary key (2NF)
• All columns in the table contain data which is not derived from other columns in that table (3NF)
• To add more columns which do not fit these constraints, you must put them in another table and join them together.

                              A good example of what this means is here.

• said yet another way: The key, the whole key and nothing but the key.

These restrictions allow for optimal query structuring and performance while minimizing anomalies due to data changes. However they do not easily support the lack of simple structure between the contents of many data sets.

• Non-Relational (NoSQL) DBs remove the restrictions on data normalization and focus, instead, on optimizing around data that does not fit well into the normalized structure which relational DBs (mostly) require. Because there are different analyses of interest and different data sources which "best" embody the data of interest, there are different types of NoSQL databases.

Below is a diagram showing the various database types.

• Key Value (aka Big Table)
• Data is stored in a GIANT ordered table of rows and columns.
• Rows and columns still serve the same general purpose as in a relational DB case
• rows = unique entities
• columns = attributes.
• ...but normalization is not required (or expected)...
• Data may be sparsely populated in the columns.
• I.e. a given row may only have data values for a small fraction of the columns (because most the columns don't apply to the entity this row describes).
• Columns may be VERY large in number and depend on what the DB is structured to query for.
• e.g. all unique word pairs for the entities in the database
• Google originally developed this technology for searching through web pages to fulfill search criteria. Roughly speaking:
• rows = web pages
• columns = search terms
• Document
• Entire documents are stored in a searchable format.
• JSON (JavaScript Object Notation)
• BSON (Binary JavaScript Object Notation)
• XML (eXtensible Markup Language)
• Queries search through the documents to identify the information of interest and return statistics or the document IDs.
• Good for finding actual documents which contain specific information or summarizing the information contained in a set of documents.
• Graph
• Stores information about relationships between entities (objects) in the DB
• Good for finding objects that are related to each other according to certain criteria.
• e.g. find people (entities) who are members of the YMCA (another entity) who lived in New York in 1999.

How does this relate to Big Data?
Many NoSQL DBs are built to operate on distributed file systems and process queries via distributed computing. In fact, the very nature of the data being looked at is so large

• operating on >100 PetaBytes and ingesting >500 TeraBytes/day for Facebook
• processing >20 Petabytes / day for Google
• Processing > 340 Million tweets / day for Twitter (~44GB/day but a huge number of entities)

 and so unstructured (hard to normalize) that the data could be stored and handled in no other way.

Can't Test This... A/B Testing

A/B testing is a very powerful tool for developing certain kinds of products. Here are a few thoughts on where it does and doesn't work.

Below is a high level flow of the testing cycle.

A/B testing works when:

• The cost of implementing ver A & B +
• The cost of collecting "enough" data about A&B +
• The cost of fanning out the "best" version,

is less than:

• The cost of visiting "enough" of your key customers +
• The cost of spending "enough" time with each of them to understand the full requirements.

Or framed a different way...

If it costs a significant amount to develop, test or deploy the thing you want to evaluate or

If you cannot get adequate information back from the customer base or

If you cannot get information back in a reasonable amount of time,

then there may be better development approaches than A/B testing.

The Essence of a Marketing Requirements Document (MRD)

A few thoughts about writing MRDs.

NOTE: The MRD should describe WHAT needs to happen overall and between parts. The MRD should not (usually) describe HOW all the parts get implemented - that is for the engineering design document.

1. Describe the end-to-end scope of the problem to be solved
2. Break the problem into logical sub-problems
3. Describe the inputs required to resolve each sub-problem. This includes:
• human interfaces for data input
• one time
• interactive / iterative
• machine / data inputs from external data
• machine / data inputs from internal (transient) data
4. Describe what output should be generated by resolving each sub-problem. This includes:
• which data is needed as "the" output. i.e. the "permanent" data.
• What is the expected input format of the consumer(s)?
• which data is needed to address another sub-problem. i.e. transient data.

All of this should be written with an eye to the system in which the functionality described by the MRD lives.

• Every input is the output of another system, ideally described by an MRD (reference it if you can).
• Other systems may need the output of the system described by your MRD. Include these systems as examples in your MRD to give color to the bigger picture problem being solved.
• Human input interfaces (User Interfaces), Machine Input interfaces (APIs) and Permanent Data stores (HDDs or Databases) may be shared between multiple systems. If they are, or should be, note that explicitly.

One obvious challenge, given the recursive approach to MRD writing given here, is figuring out where to stop.

How big should the scope of THE problem be?

My experience: when in doubt, make the scope too big. Then scale back the scope during reviews based on feedback from the stakeholders.

The Relationship Between Virtualization, Big Data and Cloud Computing

Virtualization is about taking a single large compute resource and making it act like many smaller resources.

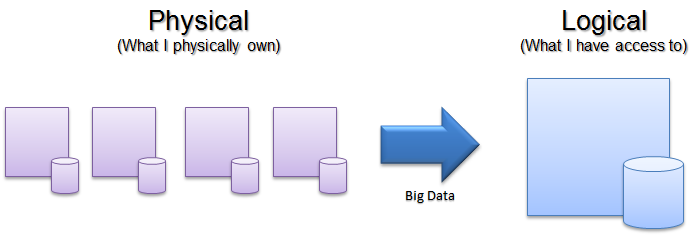

Big Data is about taking many smaller compute (and storage) resources and making them act like one big resource.

Cloud computing is about easily changing my compute and storage resources as needed.

Big Data can leverage cloud computing to scale the size of the "one big" resource as needed.

The Essence of Vision

One of the best summaries I have seen of what implementing one's vision means.

• Experience many things in order to distill your vision
• Make it your mission
• Reduce it to a question
• Apply the question relentlessly to your actions.

Quote extracted from the talk at this link.

Bret Victor - Inventing on Principle from CUSEC on Vimeo.

A little bit about Big Data - Hadoop

One of the ways that Big Data of the sort discussed in this last post is implemented is with an open source technology stack called Hadoop.

Hadoop consists of a two main parts:

• HDFS - Hadoop File System
• MapReduce infrastructure

These allow data processing jobs to be divided among multiple nodes and then aggregated into a single result. In essence, this constructs a large, parallel computer from many smaller computers - basically the opposite of virtualization.

Schematically, a Hadoop cluster looks like this:

10,000 ft view of how it works

• The Job Tracker on the master server gets a job
• The Job Tracker breaks up the job using the map function
• Basic queuing ensures that any one node is not overloaded with tasks
• The are tasks preferentially distributed to the nodes nearest the data on which the task must operate to minimize file transfer overhead*.
• nearest = same node as the data resides.
• next nearest = different node but behind the same switch (so that data transfer is localized to that network segment).
• The Job Tracker gets status for all tasks via the Task Trackers as they run.
• If a node stops reporting, the Job Tracker will redistribute that node's tasks to another node.
• When all tasks are complete for a job, the Job Tracker has the nodes execute the reduce function to generate a single result from the tasks' output.
• The final output may then be used by other applications directly or as the input to another MapReduce iteration.

I am certain that I missed almost every important detail in terms of the actual engineering implementation of a Hadoop cluster. But for those who just need a cursory understanding of the technology in order to make sufficient sense of what engineering is actually talking about to sanity check proposals,  I hope this hits the mark.

---------------------------------------------------------------------------------------------------
* HDFS and the awareness of data's physical location is very important in dealing with large data.
To make compute and storage capacity scale linearly with cost, the data must be spread around all the nodes in the cluster and a record kept of where all the data actually is. It can't be kept centrally or data transfer becomes a serious bottleneck to computational performance. I.e. it could take longer to move the data to a compute node over a network than it takes to actually process it.
This distribution is managed by HDFS.

HDFS holds and replicates data in the system in order to minimize the chance of a bottleneck. It does this by keeping at least 3 copies of the data:

• an original
• a copy on another node behind the same switch as the original
• a copy on another node on a different switch from the original

This replication attempts to strike a balance between:

• keeping enough copies of the data to minimize the queue size on each node (to ensure timely completion of jobs) and to ensure robust execution despite failed tasks on dead nodes

-and-

• reducing the total storage capacity of the system by duplicating data.

A little bit about Big Data

The inspection tools that I work with are capable of churning out enormous amounts of data - on the order of terabytes an hour. To handle that data volume, we have done what every company did (up until now) which was sample from the data and reformat it to fit into a gigabyte sized database. This lets the data be accessed for useful analyses but creates a problem in that much of the data is actually lost, ultimately limiting what can be learned.

This is traditional data processing.

To store and handle more data, we swap out the existing hardware with bigger (read: more expensive) hardware. This works only up to a point as the cost of bigger h/w does not rise linearly with capacity. So you reach a limit to what is cost effective pretty quickly.

Schematically it looks something like this:

Several data sources structure the data and put it into a database. Programs running on the compute resources access the data from the database and provide some analysis. Scaling the system means getting bigger h/w.

Big Data changes how this can be done.

At its heart, Big Data is about making the data storage size and computing power scale in a linear way with cost. This is done using a few technologies which I will describe in more detail later.

Schematically it looks something like this:

One system coordinates the actions of many nodes in order to generate a desired computing result. Each node contains both compute and storage.
The entire system works in the same basic way regardless of how many nodes are present. So if more data storage or more computing power is required it can be added by provisioning more nodes instead of replacing the entire system with larger nodes. This makes it easy for a company to scale its costs with actual business volume or to handle burst loads via a hybrid cloud approach (i.e. provisioning additional nodes on demand as an IaaS offering) to avoid large capital expenditures due to over provisioning.

Through this architecture, Big Data brings significant change to the limits of how much data can be handled in a timely manner. IBM has a great summary of this principle in its "three Vs".

1. Volume : Petabytes instead of terabytes.
2. Velocity : Analyzed in seconds rather than in minutes, hours or days.
3. Variety : Coming from many sources, including unstructured data sources (i.e. things that don't fit into a relational database very well).

So, instead of throwing away most of the inspector data as we do today, we could keep the data and build a system at reasonable cost which could actually process it. With hard work on new algorithms which could take advantage of the new data would come new insights into the phenomena behind the data.

Not trivial but newly possible.

What is Agile Development an Answer to?

I got to thinking about some of the problems I see at work around software development & roadmap and decided to apply some systems thinking to the situation. This is the result.



The key learning:

• Really good use case validation is probably the largest leverage point.
• Agile development can be an alternative to really good use case validation.

No surprises there but it is interesting to see the dynamics that lead to those conclusions. The feedback loops suggest alternative paths to address the customer acceptance problem when neither use case validation improvements nor agile development are feasible. For example:

• What if you refused to add late features and managed the initial urgency to gain product acceptance? As long as the gaps are fixed in the medium term, the improved roadmap credibility may be enough to gain acceptance in the face of gaps next time because the customer believes your roadmap claims.
• If apps and product managers are failing to validate use cases sufficiently, can you increase scrutiny on requirements by engineering and increase insistence on complete test case details by SQC to minimize factors which cause schedule slips and perhaps offset the slips caused by feature adds?

Google Marketing - A Short Analysis

This is what happens when you dedicate a few hours to intensively trying to answer a single question about a single company (in a slightly modified version to remove work related info).

Thanks to Kwok Ng for his help on this.

 By the way... Does anyone know a GOOD way to get PPT slides onto the web with no conversion artifacts? Neither SlideShare nor Google Docs did it for me.

The Essence of Data Analysis

Cloud Computing, Virtualization, IaaS, PaaS and SaaS - Part 2

In part one of this post, I looked in to the question of why cloud computing is important. In this post, I will look into the question of what cloud computing is.

NIST's definition of cloud computing gives a useful model for deciding what is and is not a cloud deployment:
 "cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction."

But to understand what "the cloud" is really made up of, it helps to look at how cloud computing is packaged and sold.

• Infrastructure as a Service (IaaS)
• Platform as a Service (PaaS)
• Software as a Service (SaaS)

Infrastructure as a Service (Iaas)
In this cloud offering, the seller provisions virtualized compute, network and storage upon which the buyer installs his own operating system and software. This is most easily thought of as buying bare computers and storage onto which your own IT dept will put everything required for your specific uses.
A few major vendors who offer these products are: Amazon Web Services, RackSpace and AT&T Synaptic Hosting.

Virtualization software is key to making IaaS feasible. Without virtualization, physical hardware would need to be provisioned for each customer. This would make it prohibitively expensive to quickly provision, re-provision and scale resources to meet customer needs.
The major virtualization s/w vendors include VMWare (ESX), Microsoft (HyperV) and an open source virtualization solution Xen.

More on virtualization in another post.

Platform as a Service (Paas)
In the platform level cloud offering, the seller provisions some combination of operating system, middleware and runtime packages which enable the buyer to develop and run applications of their choosing. This can be thought of as buying access to services which enable programs to easily access the resources they need to run.
Vendors provide a variety of offerings in this space. A few major offerings are below:

• Google App Engine provides a number of runtime environments for web application developers.
• Amazon Simple Storage Service (S3) provides file based storage to any application which needs it while Amazon Elastic Block Store (EBS) provides block level storage for applications the need direct storage access (like DBs).
• Microsoft Azure provides access to a few runtime envrionments,  SQL DB services for applications which need DB services and the virtual network fabric required to link together multiple server's services.

Software as a Service (Saas)
In this level of cloud offering, the seller provides the buyer with access to end applications while hiding the infrastructure, middleware and runtime components. Pretty much every time you hear about a "web application" being offered by a company, you are seeing a SaaS product.
There are probably thousands of SaaS offerings available so covering any significant fraction of the space here is futile. But here are a few examples of SaaS offerings:

• Web email - from google, Yahoo, etc
• Office 365 and Google Apps - On line productivity apps for creating, accessing and collaborating with others on a variety of document types (word processing, presentations, spreadsheets, picture editing, etc).
• Sustainable Supply Chain (SSC) - Supply chain survey management for corporate social responsibility reporting from CSRware.
• Facebook and Google + - public social networking tools for keeping tabs on your friends around the world.
• Socialcast, Clearvale , Jive and Spigit -  Enterprise social networking tools for keeping abreast of news and status, smoothing workflow, fostering collaboration and spurring idea generation in a corporate context.

One additional consideration is which user base a cloud deployment is intended to serve. This leads to the ideas of: Private, Public and Hybrid Clouds

• Private cloud = services and (often hardware) are strictly for a single company's use. Frequently this implies that the company consuming the services will deploy the cloud services on hardware behind their corporate firewall.
• Public cloud = services are available for all users anywhere. Though users may need to pay for services... This is the context in which most people experience the cloud because of the heavy reliance start-ups offering SaaS products have on public cloud services.
• Hybrid cloud = multiple cloud systems connected in such a way as to allow programs and data to be easily moved between private to public clouds.

Cloud Computing, Virtualization, IaaS, PaaS and SaaS - Part 1

What is cloud computing and why is it important?

On the question of importance, cloud computing addresses several business problems.

Perhaps the most mundane problem that cloud computing addresses is one of cost for getting applications up and keeping them running.

• Availability
• Because of the underlying technology used in cloud computing (Virtualization - more on this next post.) it becomes relatively easy to implement failover and high availability for servers. This makes the customer experience better (fewer interruptions) and allows more routes to addressing business critical applications (lowers barrier to entry on some enterprise applications).
• Application deployment & maintenance
• Depending on the level of the cloud you engage at (Infrastructure, Platform or Software - more on this next post), the level of IT expertise required to use the applications / services you want can be greatly reduced. Software patching, upgrades, hardware provisioning and maintenance is left to the cloud providers who have this expertise on staff.

These "mundane" aspects of cloud computing enable significantly less mundane capabilities. The most immediate of which are the new business models that become feasible.

• Software start ups galore
• Because compute power can be purchased on-demand and in relatively small units, capital costs for starting a software company are significantly reduced. This enables more players to try more things in search of the next big thing.
• F2P (Free to Play), Freemiums and ad-driven businesses
• Because the marginal cost of adding users to a centralized s/w application can be nearly zero when deployed in a dynamically scalable infrastructure such as the cloud provides, companies can explore business models that "give away" software, or more precisely: give away access to software, while closely tracking and tailoring the user experience more easily. This leads to businesses that thrive on micro transactions within the software or on ad revenue instead of from sales of the software itself.
• On-line special events
• Relatively low cost and rapid provisioning of compute, network and storage resources allows for companies to generate increased community engagement or media attention by using this burst capacity to host periodic special events. For a small fraction of the cost of buying and setting up the h/w and software required to gain this capacity, the same buzz generating potential can be realized.
• Mobile
• By using the relatively limited compute power of networked mobile devices to drive the user interface and pushing the computationally intensive tasks to servers in the cloud, the capabilities of mobile devices become nearly unlimited. This creates a new class of applications (e.g. voice recognition, navigation, etc) for entrepreneurs to explore and market, driving sales of mobile computing hardware (e.g. smart phones and tablets) or of the applications (as apps or as services) themselves.
• Distributed work force, virtual desktops and collaboration
• Because public cloud resources can be accessed from any internet connected device and data storage is easily centralized, the cloud makes it more feasible than ever to provision specialized applications to anyone, anywhere, to keep company data centralized and provide tools by which physically separated groups can easily interact and exchange information in real time in order to improve productivity.

As Corporate Social Responsibility (CSR) and sustainability concerns increase, the "green" aspects of cloud computing also become more important.

• Economies of scale in "green" data centers may mean that renting capacity via "the cloud" is greener than you can afford on your own.
• Making an efficient data center requires high up front capital and expertise costs. Considerations like the ones below are more affordable by large businesses or by dedicated cloud hosting companies where the risk associated with the capital costs are more acceptable for the long term return.
• efficient server h/w
• low energy and passive cooling strategies
• occupancy based lighting, energy efficient lighting fixtures and daylighting strategies
• green power purchase agreements
• on-site generation via renewables (e.g. co-gen, bio-fuel based fuel cells, PV, Solar thermal, etc.)

Next time some details about the the "what" part of the question.

B-Corporations are Real in California

It looks like the legislation making B-Corporations legal in California has passed and one big name corporation has signed up.

Read this previous post for more thoughts on what this means.

It's a good step towards making it legal, by changing the focus on shareholder primacy, for a public corporation to even consider doing what you or I would see as mandatory in our dealings with other people and with our communities.

More on Virtual Daylighting

I posted earlier about an experiment with virtual daylighting on a small scale using indirect light.

Here is a post about a direct experiment where the designer replicates the sky, clouds and all, using arrays of LEDs.

Probably not an energy efficient use of LEDs but an interesting experiment that requires some thought about the trade-offs between energy efficiency and productivity gains.
